Ferdinand details needed

Discussion in 'The Tanks of World War 2' started by TISO, Jan 12, 2008.

  1. TISO

    TISO New Member

    Joined:
    Feb 22, 2005
    Messages:
    1,231
    Likes Received:
    1
    Location:
    A wierd blue planet
    via TanksinWW2
    I'm working on a modell of Trumpeter SdKfz-184 Ferdinand in 1/72. Since the modell includes a beutifull grilles for engine deck i need something uder them. Does anyone have any detail photos or drawings of the engine compartment?

    All i found is a sideway ( direcly from port side) cutaway of the wehicle that doesn't help much with placment of the details.

    As all hathes on fighting compartment can be glued opened i would also need drawings or photos of fighting compartment.
    Same sideways cutaway also shows the figting compartment but again is not usable in regards of placment of details on the left side of fighting compartment
    I plan to use parts from Italeri/ESCI kit for the interior.

  2. Che_Guevara

    Che_Guevara New Member

    Joined:
    Jun 28, 2005
    Messages:
    1,109
    Likes Received:
    0
    Location:
    Davy Jones's locker
    via TanksinWW2

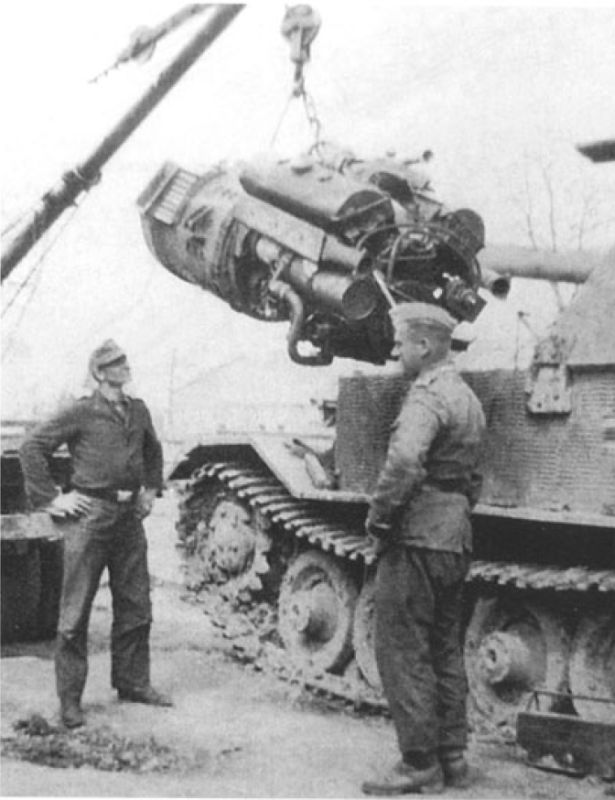

    Don´t know, guess they wouldn´t be such a great help, but they come close to it :wink:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  3. TISO

    TISO New Member

    Joined:
    Feb 22, 2005
    Messages:
    1,231
    Likes Received:
    1
    Location:
    A wierd blue planet
    via TanksinWW2
    Thanks. The last two are very helpfull. At least in the direction of the engine/generator blocks and lenght and placement of electric motors. Unfortunaly no details of placement and shape of water coolers for the engines.

    Where and how were the coolers placed?
    On the drawing they are behind the driver compartment. I would need the drawing from the top to see how wide and where exactly they are placed.

  4. wozwasnt

    wozwasnt New Member

    Joined:
    Sep 28, 2007
    Messages:
    53
    Likes Received:
    0
    via TanksinWW2
    [​IMG]

    [​IMG]
