    Team USA (Ricky and Roel)

    M4R1 "Sheridan" Armoured Personnel Carrier


    The Head of the American Design team nearly swallowed his chewing gum when he read the design brief, as he saw this as a perfect opportunity to make use of his favourite design – the successful Medium Tank M4.
    The basic armour of the M4’s hull was adequate to meet all the defensive criteria given by His Worshipful Eminence, Chzaba III, and the basic chassis design has so far proved very adaptable.

    The design team thought hard about how best to utilise the interior space of the Sherman, and after a number of abortive attempts (including one unfortunate design where the driver had to lie prone on a shelf above the engine) the following layout was decided upon:
    The driver’s compartment was kept ‘as is’, but the engine was then placed immediately behind the driver, leaving the rear of the vehicle free for carrying troops. The rear hull roof was raised to allow a comforatable amount of headroom, and large double-doors were installed at the rear of the tank for the troops to enter / exit.
    The hull machine gun position was removed, and replaced with a turret mounted Browning .5in machine gun, which has proven itself as an excellent HMG, and doubtless will continue to do so.

    The standard APC varient can be easily transformed into Command Vehicle or Ambulance varients, and the basic design can support a wide range of weaponry, mounted over the rear of the vehicle in place of the troopers.

    Suggested weaponry for these varients are:

    Light AT gun: 37mm M3 Anti-Tank gun

    Medium AT gun: 57mm M1 Anti-Tank gun

    AA guns: Essentially any light or medium guns can be carried – we recommend 4x.5 Browning machineguns, 2x20mm Oerlikon Cannon or 4x20mm Oerlikon cannon for Light AA coverage, and single or twin 40mm Bofors cannon for Medium AA coverage.

    Light artillery: 105mm M1A2 Howitzer

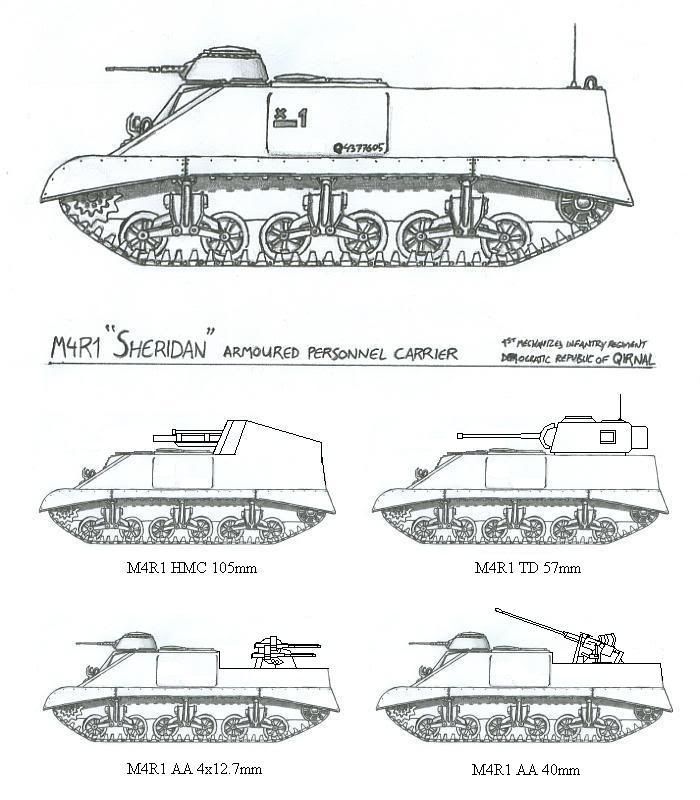

    [​IMG]

    Buying this vehicle gains you a capable family of vehicles with a high degree of commonality with the standard American M4 series Medium Tank (and all its current varients), a tank already making a name for itself in terms of its reliability, ease of maintenance, and the sheer adaptability of the basic design.

    GENERAL DATA
    Other Designation(s): M4R1
    Type: Armoured Personnel Carrier
    Crew: 3
    Length /hull (m): 5.89
    Width (m): 2.62
    Height (m): 2.20
    Combat Weight (kg): 29,500
    Radio Equipment: SCR508/528/538

    FIREPOWER
    Primary Armament: 1 x .50 caliber MG HB M2
    Ammunition Carried: 6,000
    Traverse (degrees): 360°
    Elevation (degrees): -10° to +35°
    Traverse speed (360°): 15 sec.

    MOBILITY CHARACTERISTICS
    Engine Make & Model: Continental R975 C1
    Track Links: 79/track
    Type & Displacement: R9, 15.9 liters
    Track Width: 42.1 cm
    Horsepower (max.): 400hp@2400rpm
    Track Ground Contact: 373.4 cm
    Power/Weight Ratio: 13.8 hp/tonne
    Ground Pressure: 13.3 psi
    Gearbox: 5 forward, 1 reverse
    Ground Clearance (m): 0.43
    Fuel: Gasoline (Petrol)
    Turning Radius (m): 18.9
    Range on/off road (km): 200
    Gradient (degrees): 31°
    Mileage (liters/100km): 415 on road
    Vertical Obstacle (m): 0.61
    Fuel Capacity (liters): 796
    Fording (m): 1.0
    Speed on/off road: 36 km/h
    Trench Crossing (m): 2.3

    ARMOR PROTECTION
    Armor Detail
    Hull: Front 60mm@34-90°; Side 40mm@90°; Rear 38mm@80°-90°; Top/Bottom 25mm@0°(front) 13mm@0°(rear)
    Superstructure: Front 60mm@34-90°; Side 51mm@90°; Top 25mm@0°
    Turret: Front 60mm@60-90°; Side 51mm@85°; Rear 51mm@90°; Top 25mm@0°
